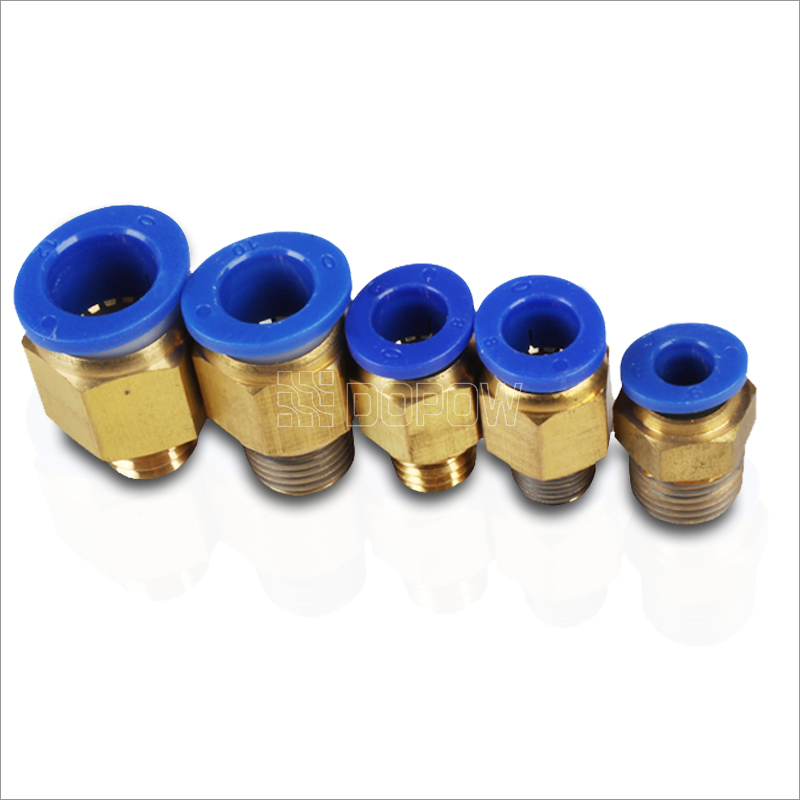

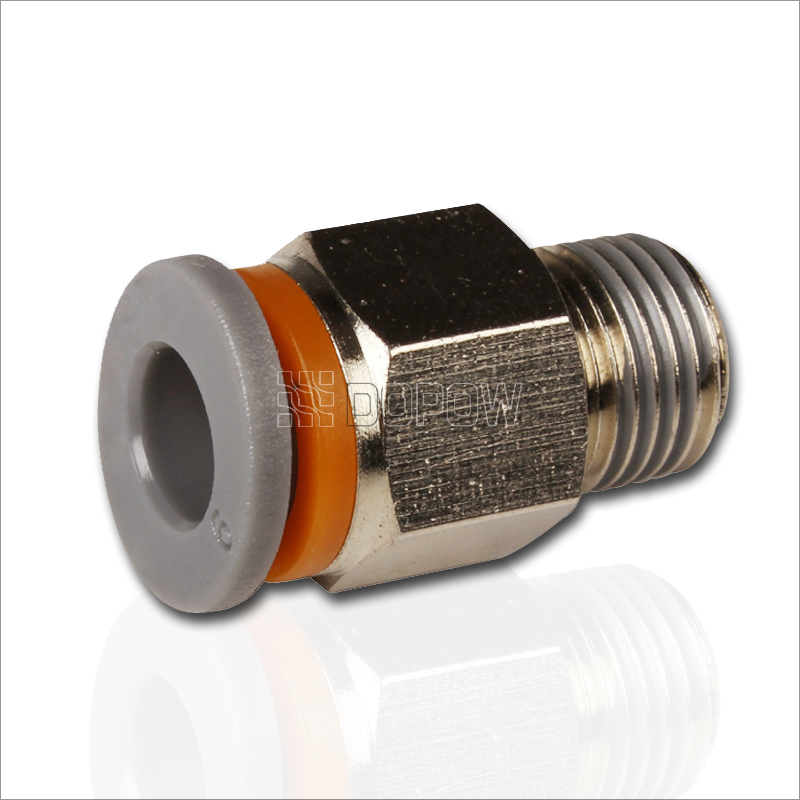

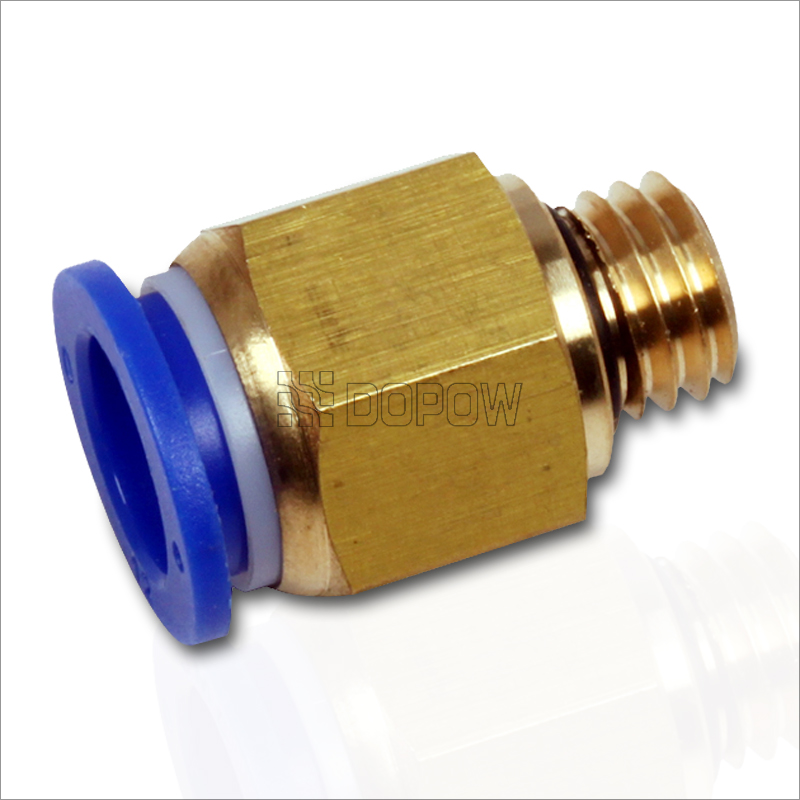

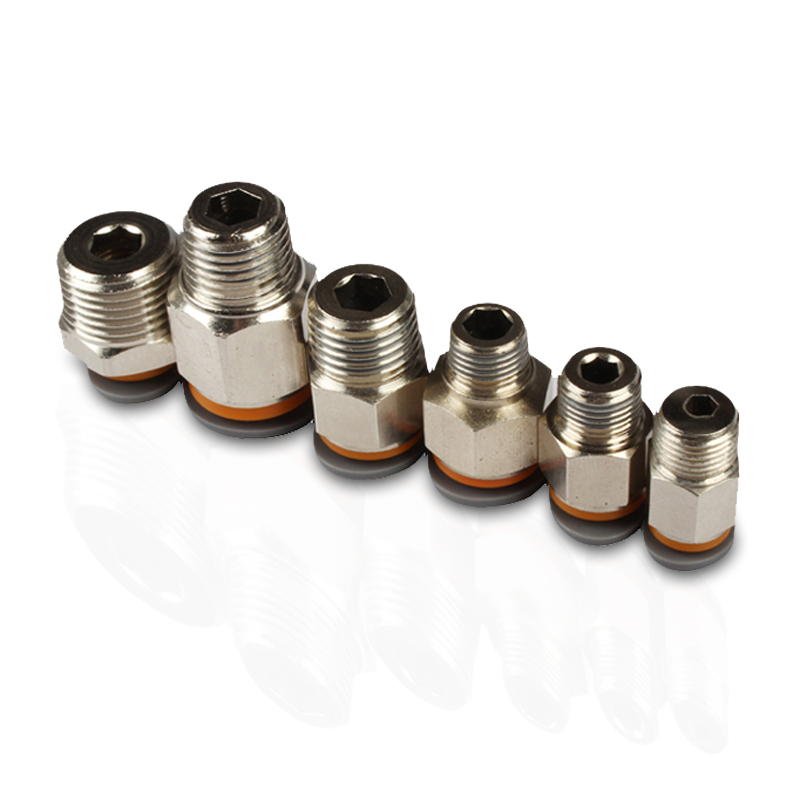

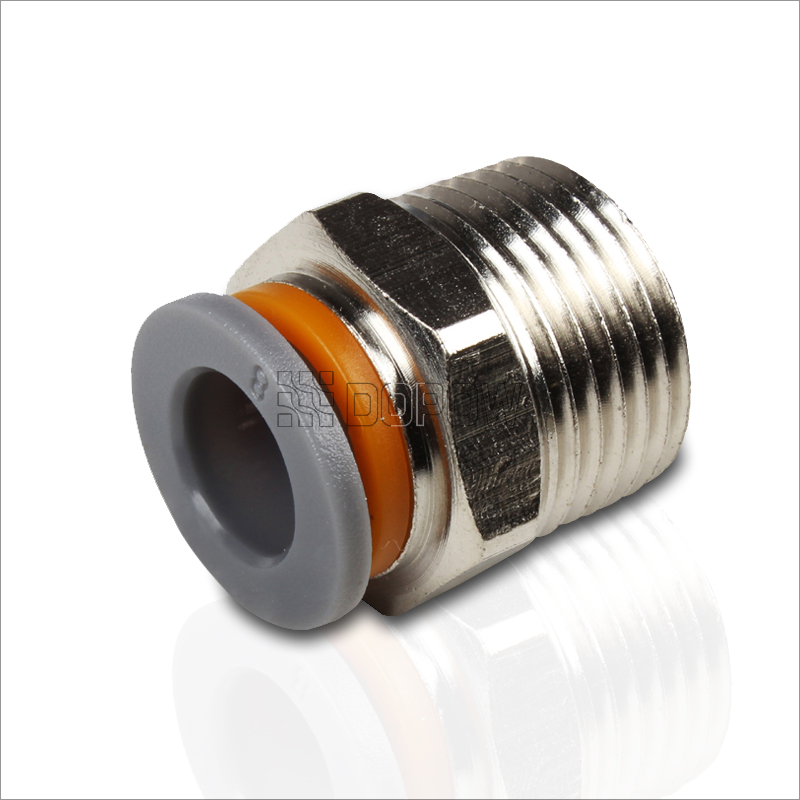

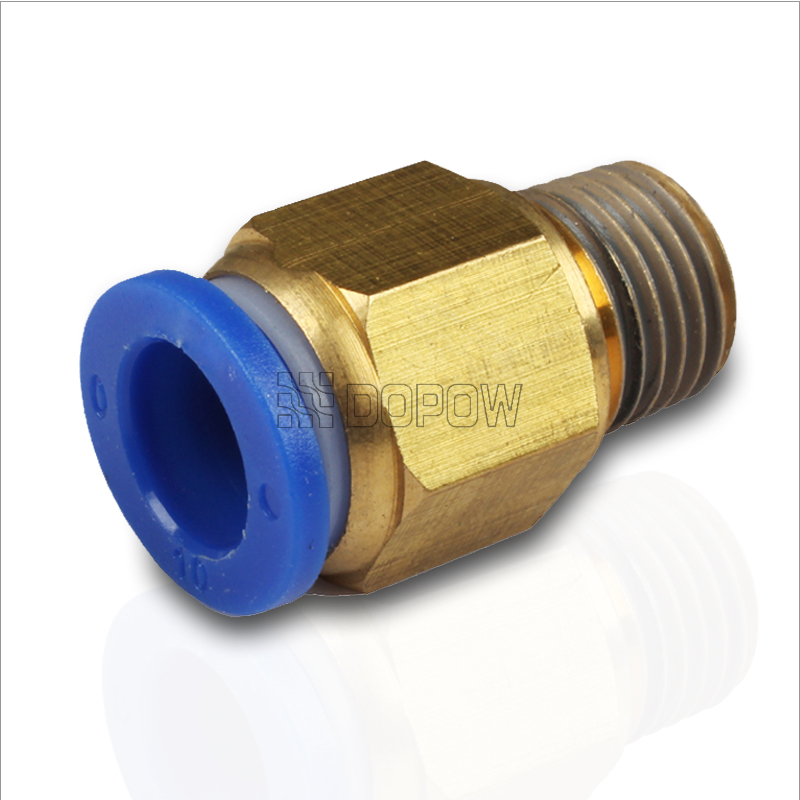

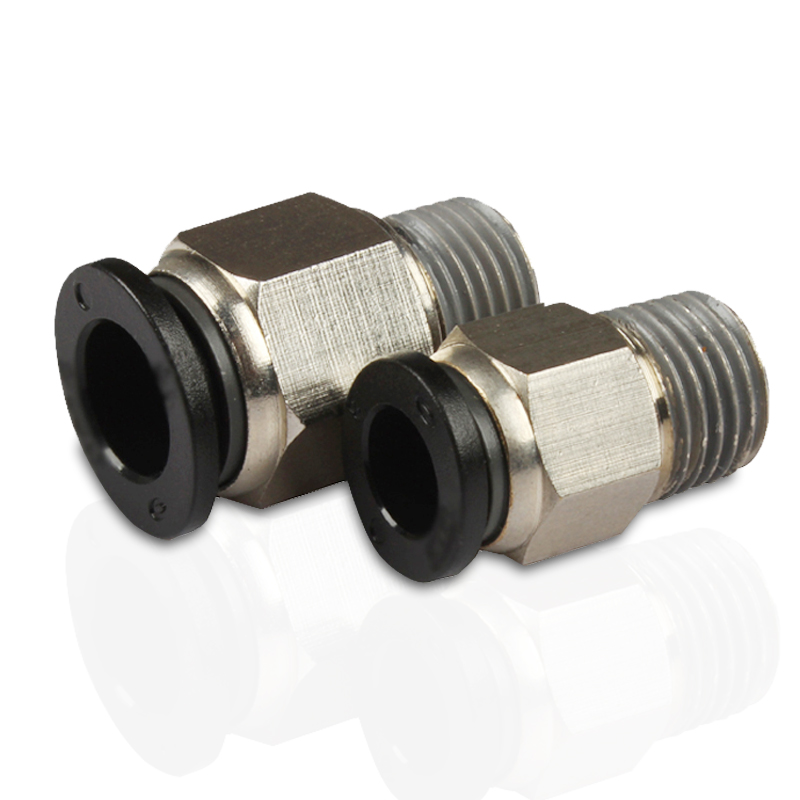

PC直通快插接頭 氣管快速氣動接頭 氣管快插螺紋直通
PC直通快插接頭 氣管快速氣動接頭 氣管快插螺紋直通
PC直通快插接頭 氣管快速氣動接頭 氣管快插螺紋直通
1. 全檢–在8公斤的壓力下經過漏氣檢測，確保產品穩定.
2.耐高壓–30公斤壓力下保持兩個小時不會出現任何問題.
3.?所有錐管螺紋預涂聚四氟乙烯防漏膠，密封性能好
4.溫度范圍:?0~1.0?MPa?(0~150?PSI).
5.壓力范圍:?0~60oC?(32~140oF).
-
- PC直通快插接頭 氣管快速氣動接頭 氣管快插螺紋直通
-
- PC直通快插接頭 氣管快速氣動接頭 氣管快插螺紋直通
-
- PC直通快插接頭 氣管快速氣動接頭 氣管快插螺紋直通
-
- PC直通快插接頭 氣管快速氣動接頭 氣管快插螺紋直通
-
- PC直通快插接頭 氣管快速氣動接頭 氣管快插螺紋直通
-
- PC直通快插接頭 氣管快速氣動接頭 氣管快插螺紋直通
| 型號 | D | R | A | B | H | HEXS | X | Y | X1 | C |
| PC4-M5 | 4 | M5 | 4 | 20.8 | 10 | 2.0 | 11.9 | 10.5 | 10 | 14.9 |
| PC4-01 | 4 | R1/8 | 7.5 | 19.8 | 10 | 3.0 | 11.9 | 10.5 | 10 | 14.9 |
| PC4-02 | 4 | R1/4 | 9.5 | 17.9 | 14 | 3.0 | 11.9 | 10.5 | 10 | 14.9 |
| PC6-M5 | 6 | M5 | 4 | 22.5 | 14 | 2.0 | 13.9 | 12.5 | 12 | 16.2 |
| PC6-01 | 6 | R1/8 | 7.5 | 21 | 12 | 4.0 | 13.9 | 12.5 | 12 | 16.2 |
| PC6-02 | 6 | R1/4 | 9.5 | 22.7 | 14 | 4.0 | 13.9 | 12.5 | 12 | 16.2 |
| PC6-03 | 6 | R3/8 | 10.5 | 20.7 | 17 | 4.0 | 13.9 | 12.5 | 12 | 16.2 |
| PC6-04 | 6 | R1/2 | 13.5 | 24.7 | 21 | 4.0 | 13.9 | 12.5 | 12 | 16.2 |
| PC8-01 | 8 | R1/8 | 7.5 | 27 | 14 | 5.0 | 15.9 | 13.9 | 14 | 18.1 |
| PC8-02 | 8 | R1/4 | 9.5 | 24.5 | 14 | 5.0 | 15.9 | 13.9 | 14 | 18.1 |
| PC8-03 | 8 | R3/8 | 10.5 | 22.1 | 17 | 6.0 | 15.9 | 13.9 | 14 | 18.1 |
| PC8-04 | 8 | R1/2 | 13.5 | 25.5 | 21 | 6.0 | 15.9 | 13.9 | 14 | 18.1 |
| PC10-01 | 10 | R1/8 | 7.5 | 29.8 | 17 | 5.0 | 19.5 | 17 | 17 | 20.5 |
| PC10-02 | 10 | R1/4 | 9.5 | 31 | 17 | 6.0 | 19.5 | 17 | 17 | 20.5 |
| PC10-03 | 10 | R3/8 | 10.5 | 27.1 | 17 | 8.0 | 19.5 | 17 | 17 | 20.5 |
| PC10-04 | 10 | R1/2 | 13.5 | 25.5 | 21 | 8.0 | 19.5 | 17 | 17 | 20.5 |
| PC12-01 | 12 | R1/8 | 7.5 | 31.6 | 21 | 5.0 | 23 | 20.5 | 20 | 22.7 |
| PC12-02 | 12 | R1/4 | 9.5 | 33.6 | 21 | 6.0 | 23 | 20.5 | 20 | 22.7 |
| PC12-03 | 12 | R3/8 | 10.5 | 29.1 | 21 | 8.0 | 23 | 20.5 | 20 | 22.7 |
| PC12-04 | 12 | R1/2 | 13.5 | 32.6 | 21 | 8.0 | 23 | 20.5 | 20 | 22.7 |
| PC16-03 | 16 | R3/8 | 10.5 | 38.1 | 24 | 8.0 | 27 | 24 | 23.5 | 25 |
| PC16-04 | 16 | R1/2 | 13.5 | 35.1 | 24 | 10.0 | 27 | 24 | 23.5 | 25 |
