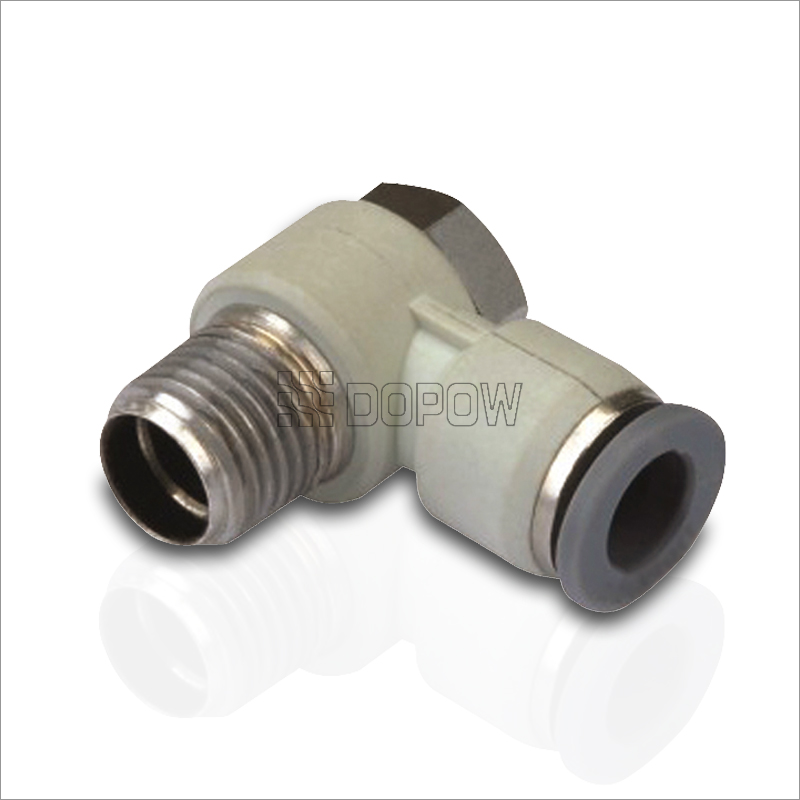

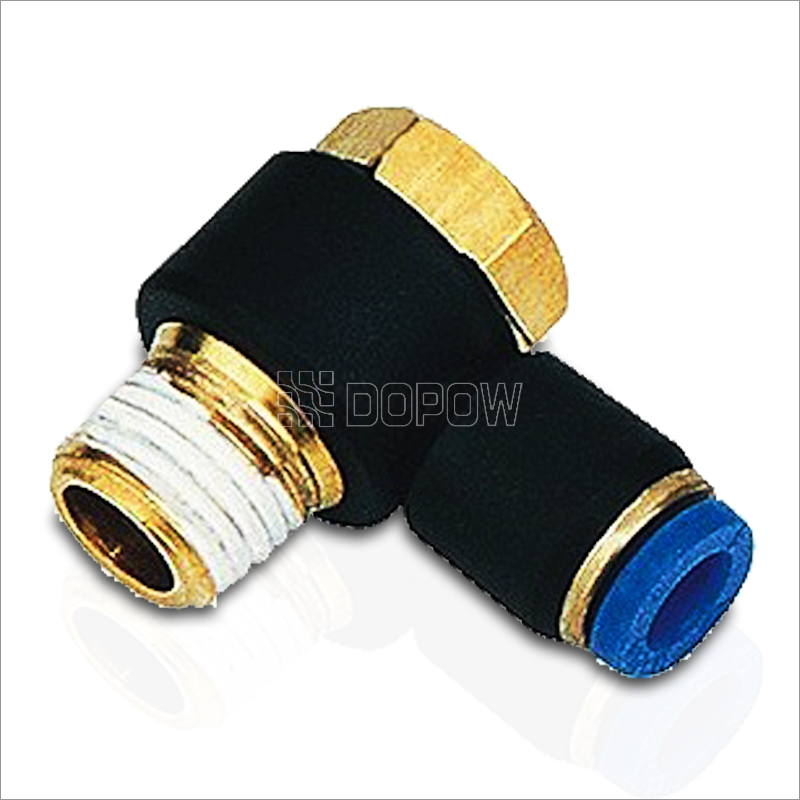

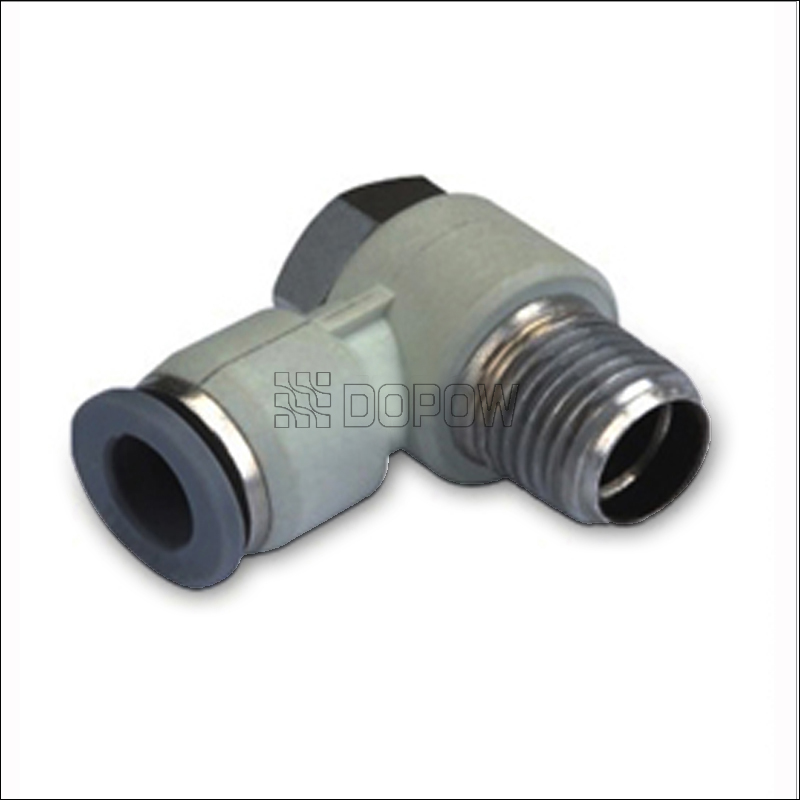

PH 外六角快插接頭 氣動配件氣管電磁閥接頭PH快接頭
PH 外六角快插接頭 氣動配件氣管電磁閥接頭PH快接頭
PH 外六角快插接頭 氣動配件氣管電磁閥接頭PH快接頭
1. 全檢–在8公斤的壓力下經過漏氣檢測，確保產品穩(wěn)定.
2.耐高壓–30公斤壓力下保持兩個小時不會出現(xiàn)任何問題.
3.?所有錐管螺紋預涂聚四氟乙烯防漏膠，密封性能好
4.溫度范圍:?0~1.0?MPa?(0~150?PSI).
5.壓力范圍:?0~60oC?(32~140oF).
-
- PH 外六角快插接頭 氣動配件氣管電磁閥接頭PH快接頭
-
- PH 外六角快插接頭 氣動配件氣管電磁閥接頭PH快接頭
| 型號 | ФD | R | A | B | H | E | X | Y | X1 | C |
| PH4-M5 | 4 | M5 | 3.8 | 17 | 8 | 20 | 11.9 | 10.5 | 10 | 14.9 |
| PH4-01 | 4 | R1/8 | 7.5 | 23.5 | 10 | 22.3 | 11.9 | 10.5 | 10 | 14.9 |
| PH6-M5 | 6 | M5 | 3.8 | 17 | 8 | 21.9 | 13.9 | 12.5 | 12 | 15.7 |
| PH6-01 | 6 | R1/8 | 7.5 | 23.5 | 10 | 23.1 | 13.9 | 12.5 | 12 | 15.7 |
| PH6-02 | 6 | R1/4 | 9.5 | 26.3 | 14 | 25.1 | 13.9 | 12.5 | 12 | 15.7 |
| PH6-03 | 6 | R3/8 | 10.5 | 31.9 | 19 | 26.8 | 13.9 | 12.5 | 12 | 15.7 |
| PH8-01 | 8 | R1/8 | 7.5 | 23.5 | 10 | 25.6 | 15.9 | 13.9 | 14 | 18.2 |
| PH8-02 | 8 | R1/4 | 9.5 | 26.3 | 14 | 28.6 | 15.9 | 13.9 | 14 | 18.2 |
| PH8-03 | 8 | R3/8 | 10.5 | 31.9 | 19 | 29.6 | 15.9 | 13.9 | 14 | 18.2 |
| PH8-04 | 8 | R1/2 | 13.5 | 38.6 | 24 | 32.6 | 15.9 | 13.9 | 14 | 18.2 |
| PH10-02 | 10 | R1/4 | 905 | 26.3 | 14 | 32.3 | 19.5 | 17 | 17 | 20.7 |
| PH10-03 | 10 | R3/8 | 10.5 | 31.9 | 14 | 32.9 | 19.5 | 17 | 17 | 20.7 |
| PH10-04 | 10 | R1/2 | 13.5 | 38.6 | 19 | 35.9 | 19.5 | 17 | 17 | 20.7 |
| PH12-03 | 12 | R3/8 | 10.5 | 31.9 | 14 | 35.6 | 23 | 20.5 | 20 | 22.3 |
| PH12-04 | 12 | R1/2 | 13.5 | 38.6 | 19 | 36.6 | 23 | 20.5 | 20 | 22.3 |
